Datacomp DFK192
| The name of the keyboard | DFK192 |
| pretty picture goes here | |
| Switch | Alps SKCM White |
| Sense method | Metal contact |
| Protocol | AT / XT (88 / 286 / 30) |
| Keycaps | Dye-Sub |
A mechanical, full-size keyboard with Alps switches, produced in at least a Danish ISO variant. With a protocol switch with options 88, 286 and 30.
Description
A mechanical, full-size keyboard with plate-mounted Alps switches, produced in at least a Danish ISO variant. The plate is flat, and the keycaps are sculpted.
Construction
Case and Internals
- Case: Plastic, yellows with time.
- Plate: Steel plate. Flat.
- PCB. One variant seems to reuse the PCB of the DFK191 .
- No daughterboards.
- 5-Din connector.
Keycaps
- Sculpted, seemingly OEM or Cherry profile. ~1.2mm thick.
- Yellows significantly with age, which indicates that they are made of ABS, not PBT.
- Legends are dye-sub.
Variants
Variants
| Model No. | Ver | S/N | Layout | Source/Example |
| DFK192ADKA08 | 8.0 | ? | ISO, DK | Gallery below |

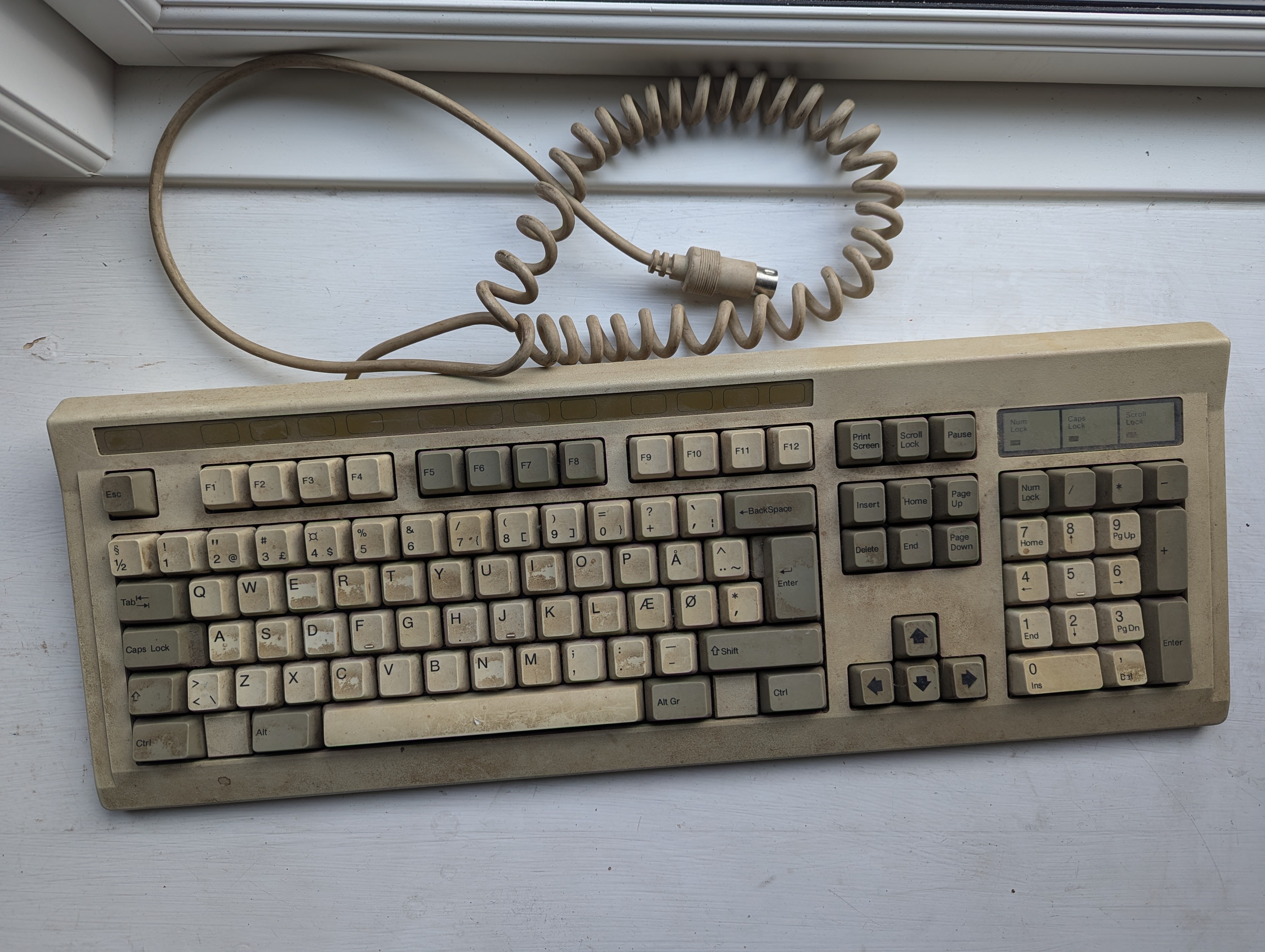

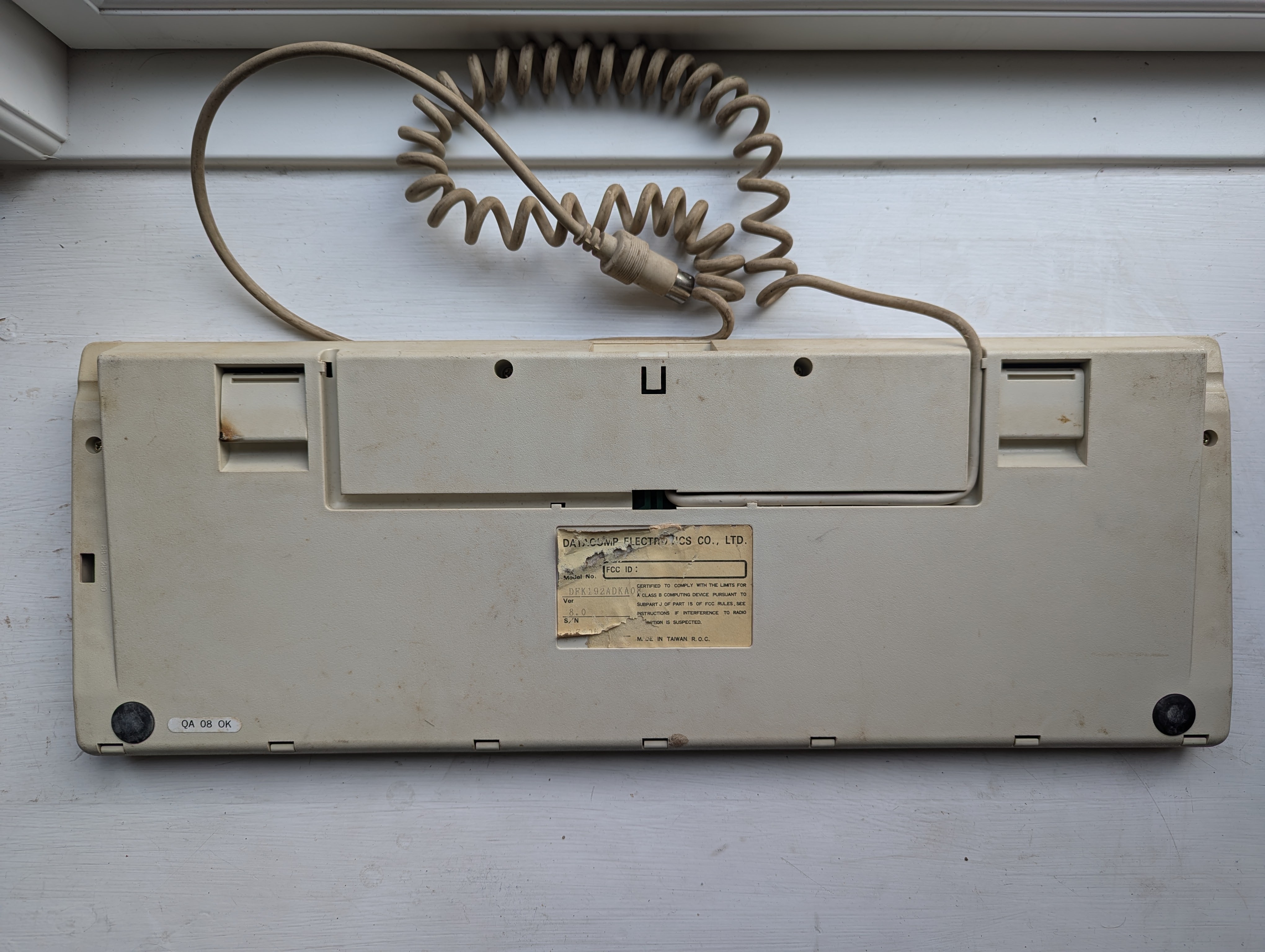

Gallery
