Mitsumi KAM Latching

Mitsumi KAM Latching

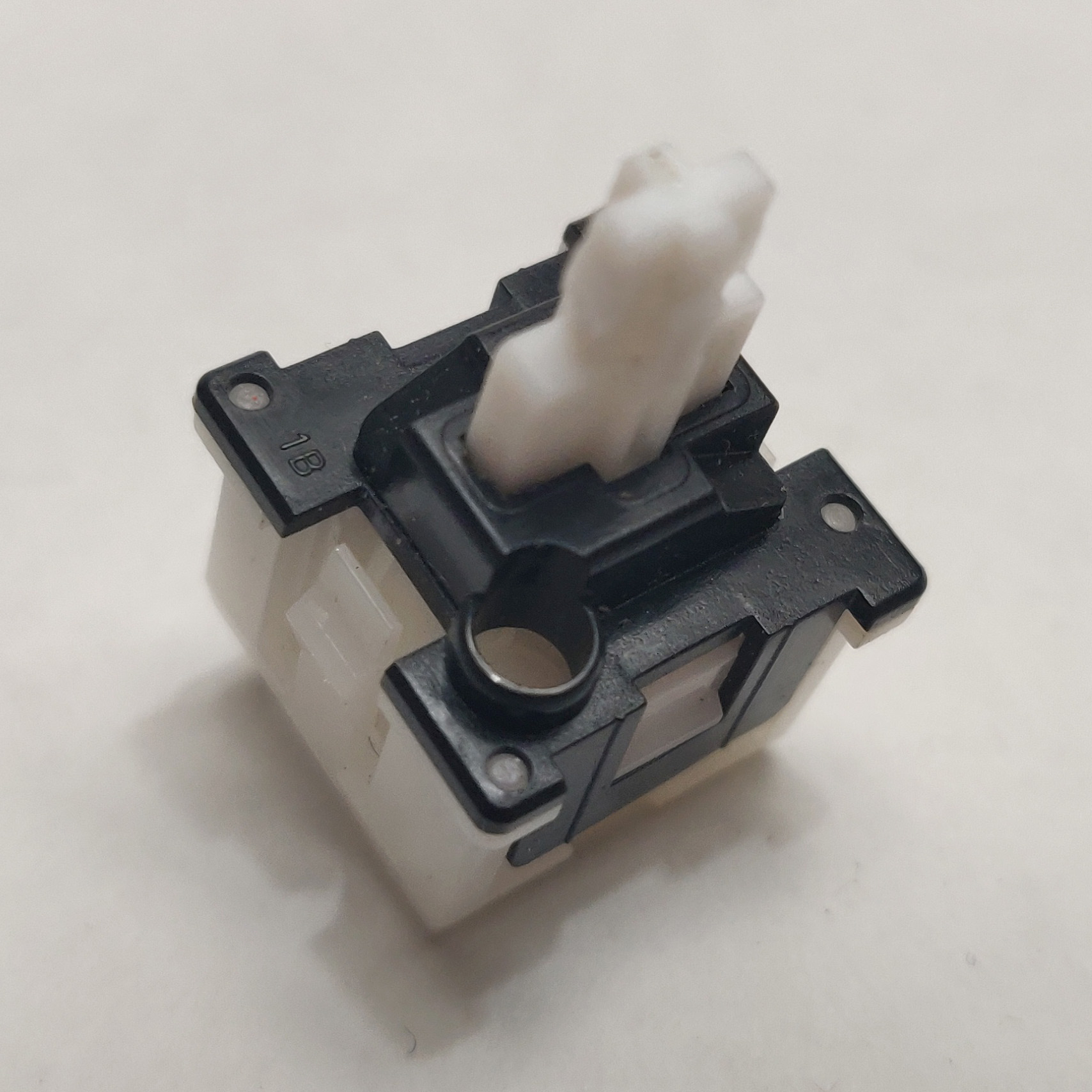

A single desoldered Mitsumi KAM Latching switch
Manufacturer Mitsumi Electric Co., Ltd.
Family Mitsumi KAM series
Switch Type Alternate action
Sense method Metal contact
Mount Plate mount

Mitsumi KAM Latching is is an alternate action switch in the Mitsumi KAM Series.

Characteristics

This switch typically has a white slider, a black top, and a milky white bottom housing. Unlike standard KAM, the top housing for this switch has a hole to accommodate an LED (although alternate action switches do not have an LED installed) and the bottom housing has a slot for a latching arm. Because of the latching arm slot, the bottom housing can only fit a single contact module, which is positioned on the opposite side of the slider from the latching arm.
