Alps SKFL
| Alps SKFL | |
 |
|
| Manufacturer | Alps Electric |
| Family | Alps SKFL series |
| Part Number | Unknown |
| Switch Type | Linear |
| Travel | 3.9 mm |
| Sense method | Metal contact |
| Mount | PCB mount |
| Keycap mount | Alps common mount with centre peg |

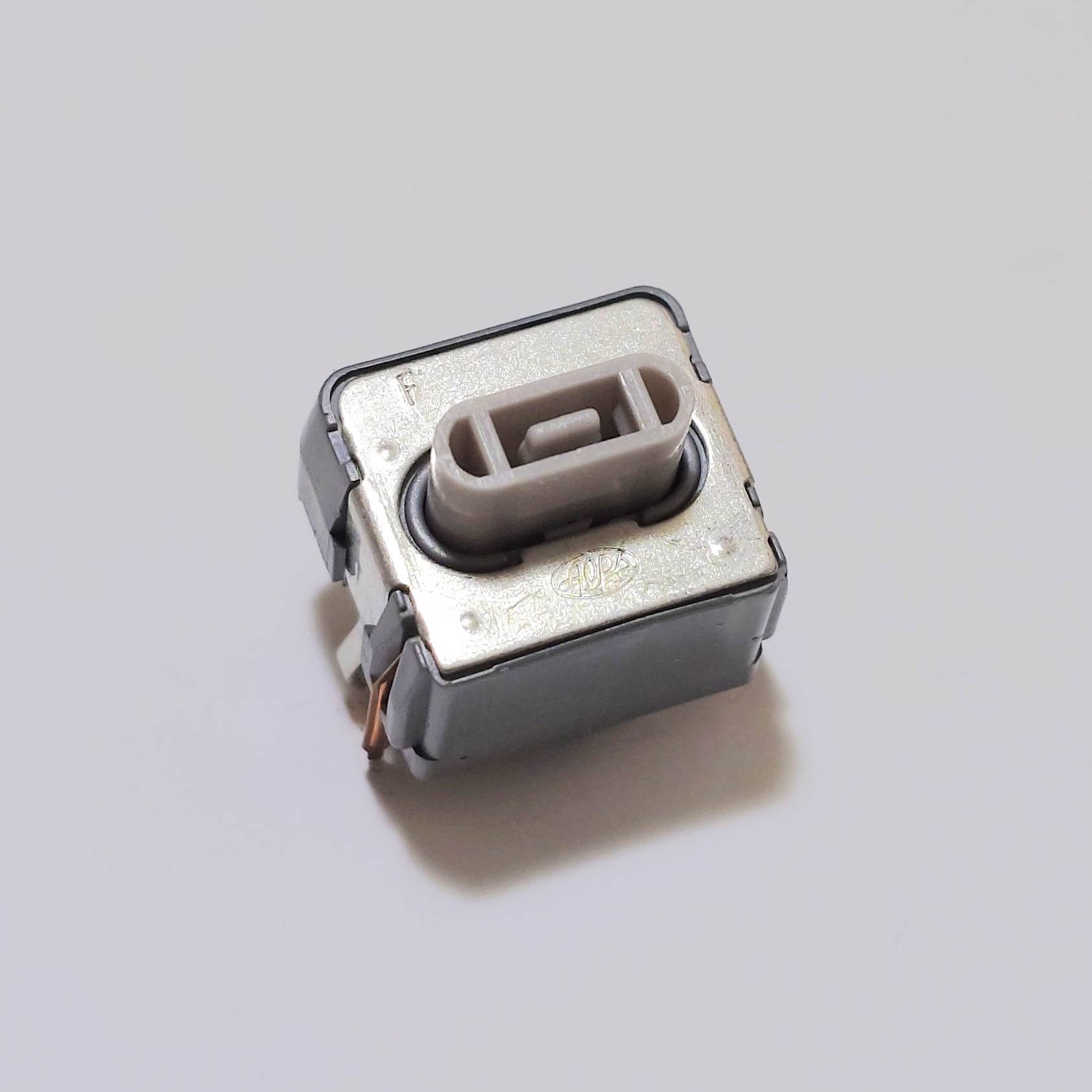

Alps SKFL is a low profile linear switch in the Alps SKFL series.
Characteristics

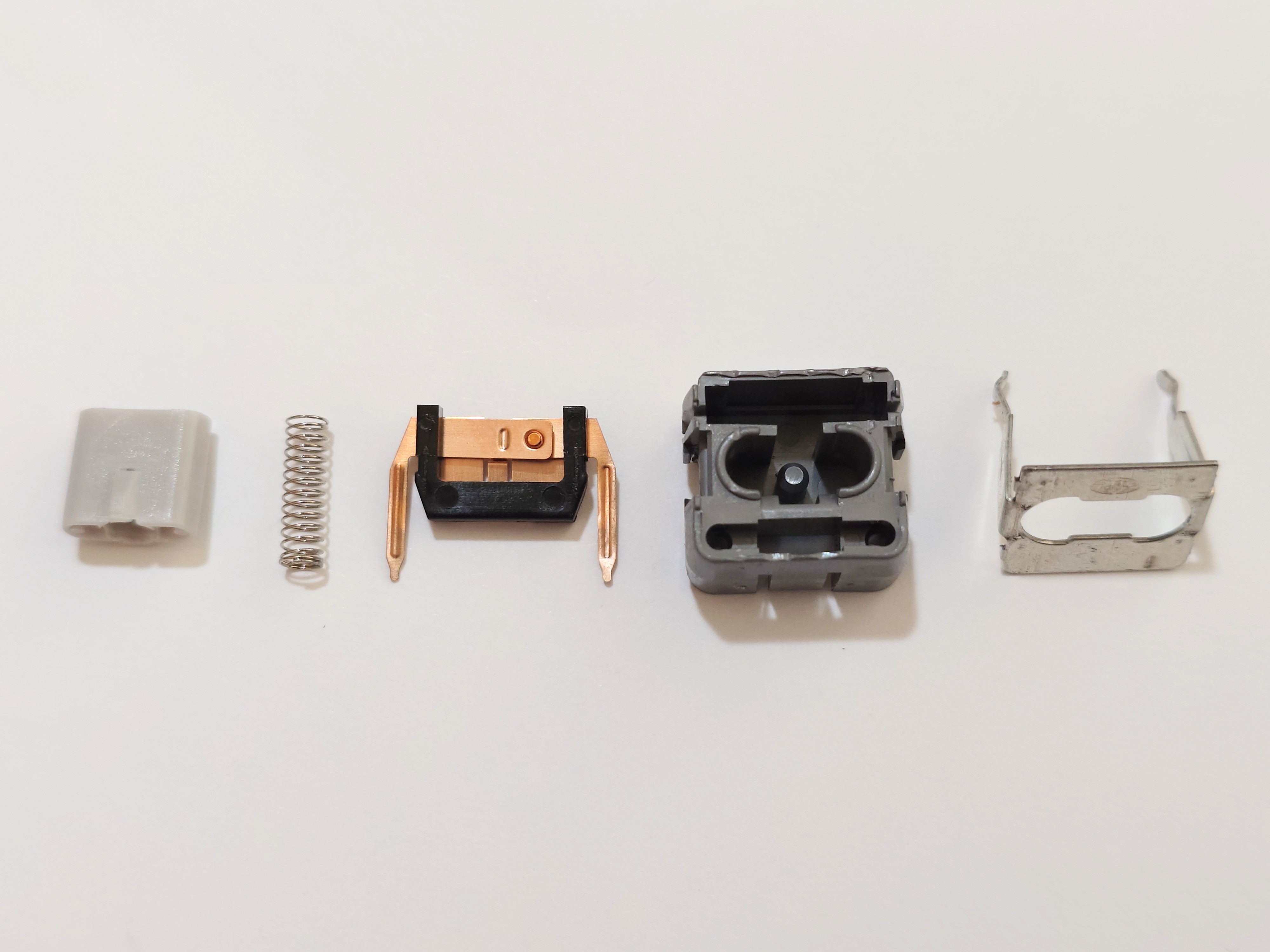

The switch has a stem, spring and contact module in an atypical housing that holds all of its components, retained by a bent metal top. The contact module functionally resembles that of Alps SKFM, though they are mutually incompatible.
The grey stem is unlubricated and takes Alps common mount keycaps with a centre hole.
The metal top acts as a jumper when soldered, and the housing has a cavity opposite the switchplate for a diode or LED; LED variants have a cutout in the metal top to accomodate it.
